The TMS320F2806PZA is a Digital Signal Processor. It is a highly integrated, high-performance solution for demanding control applications.
Parametrics
TMS320F2806PZA absolute maximum ratings: (1)Supply voltage range, V DDIO , V DD3VFL:- 0.3V to 4.6V; (2)Supply voltage range, V DDA2 , V DDAIO:- 0.3V to 4.6V; (3)Supply voltage range, V DD:- 0.3V to 2.5V; (4)Supply voltage range, V DD1A18 , V DD2A18:- 0.3V to 2.5V; (5)Supply voltage range, V SSA2 , V SSAIO , V SS1AGND , V SS2AGND:- 0.3V to 0.3V; (6)Input voltage range, V IN:- 0.3V to 4.6V; (7)Output voltage range, V O:- 0.3V to 4.6V; (8)Input clamp current:± 20mA; (9)Output clamp current:± 20mA; (10)Junction temperature range:- 40℃ to 150℃; (11)Storage temperature range:- 65℃ to 150℃.
Features
TMS320F2806PZA features: (1)100 MHz (10-ns Cycle Time); (2)60 MHz (16.67-ns Cycle Time); (3)Low-Power (1.8-V Core, 3.3-V I/O) Design; (4)16 x 16 and 32 x 32 MAC Operations; (5)16 x 16 Dual MAC; (6)Harvard Bus Architecture; (7)Atomic Operations; (8)Fast Interrupt Response and Processing; (9)Unified Memory Programming Model; (10)Up to 16 PWM Outputs; (11)Up to 6 HRPWM Outputs With 150 ps MEP; (12)Resolution; (13)Up to Four Capture Inputs; (14)Up to Two Quadrature Encoder Interfaces; (15)Up to Six 32-bit/Six 16-bit Timers.

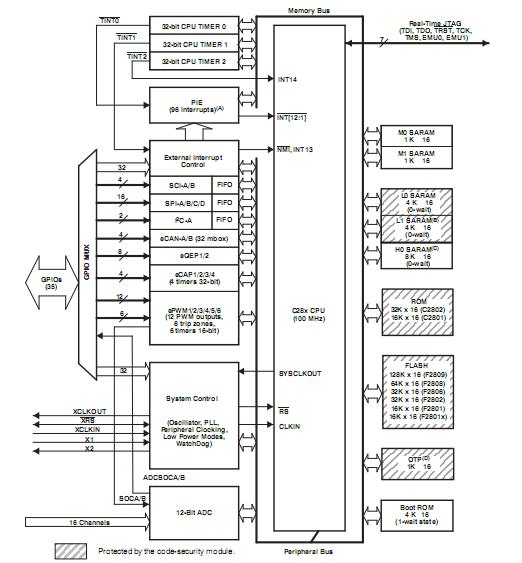

Diagrams
