Product Summary
The TLC2262CPWR is a dual and quadruple operational amplifier from Texas Instruments. The TLC2262CPWR exhibits rail-to-rail output performance for increased dynamic range in single- or split-supply applications.
Parametrics
TLC2262CPWR absolute maximum ratings: (1)Supply voltage, VDD+: 8 V; (2)Supply voltage, VDD–: –8 V; (3)Differential input voltage, VID: ±16 V; (4)Input voltage, VI: VDD– – 0.3 V to VDD+; (5)Input current, II (each input):. ±5 mA; (6)Output current, IO: ±50 mA; (7)Total current into VDD+: ±50 mA; (8)Total current out of VDD–: ±50 mA; (9)Duration of short-circuit current at (or below) 25℃: unlimited; (10)Storage temperature range, Tstg: –65℃ to 150℃; (11)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D, N, P, and PW packages: 260°C, J, JG, U, and W packages : 300℃.
Features
TLC2262CPWR features: (1)Output Swing includes Both Supply Rails; (2)Low Input Bias Current: 1 pA Typ; (3)Fully Specified for Both Single-Supply and Split-Supply Operation; (4)Low Power: 500 μA Max; (5)Common-Mode Input Voltage Range Includes Negative Rail; (6)Low Input Offset Voltage 950 μV Max at TA = 25℃; (7)Macromodel Included; (8)Performance Upgrade for the TS27M2/M4 and TLC27M2/M4.

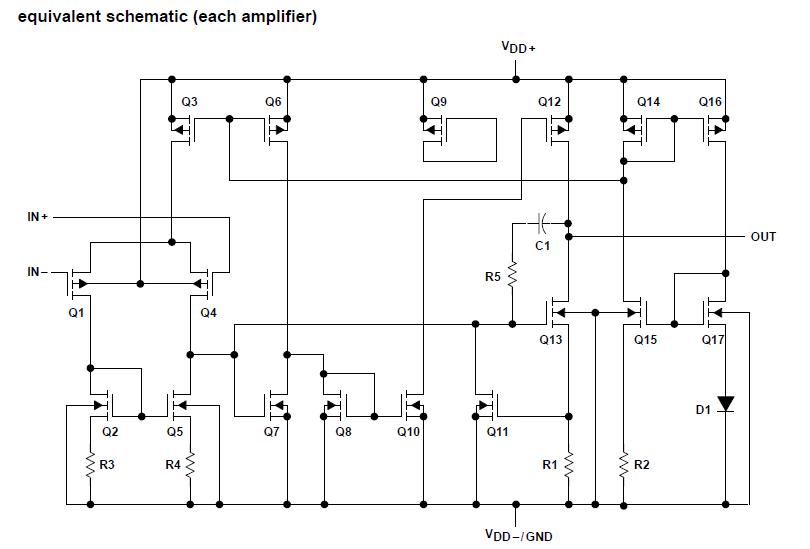

Diagrams
