Product Summary
The TMS320LF2407APGEA is a digital signal processor (DSP) controller. It offers an array of memory sizes and different peripherals tailored to meet the specific price/performance points required by various applications.
Parametrics
TMS320LF2407APGEA absolute maximum ratings: (1)Supply voltage range:-0.3 V to 4.6 V; (2)VCCP range:-0.3 V to 5.5 V; (3)Input voltage range:-0.3 V to 4.6 V; (4)Output voltage range:-0.3 V to 4.6 V; (5)Output voltage range:-0.3 V to 4.6 V; (6)Input clamp current:± 20 mA; (7)Output clamp current:± 20 mA; (8)Operating free-air temperature ranges, TA: A version:-40℃ to 85℃, S version:40℃ to 125℃; (9)Junction temperature range:-40℃ to 150℃; (10)Storage temperature range:-65℃ to 150℃.
Features
TMS320LF2407APGEA features: (1)25-ns Instruction Cycle Time (40 MHz); (2)40-MIPS Performance; (3)Low-Power 3.3-V Design; (4)Programmable Deadband (Deadtime) Prevents Shoot-Through Faults; (5)Three Capture Units for Time-Stamping of External Events; (6)Input Qualifier for Select Pins; (7)On-Chip Position Encoder Interface Circuitry; (8)Synchronized A-to-D Conversion; (9)Designed for AC Induction, BLDC,Switched Reluctance, and Stepper Motor Control; (10)Applicable for Multiple Motor and/or Converter Control.

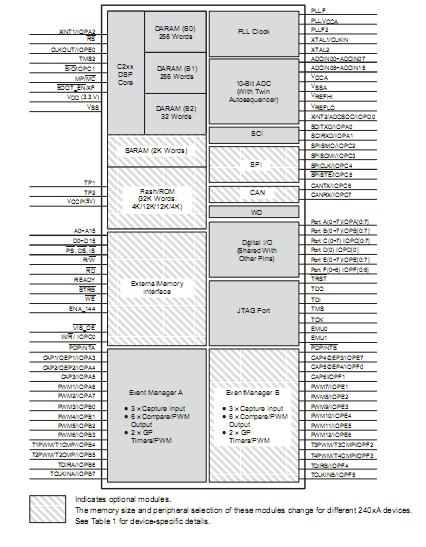

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS320LF2407APGEA |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) 16-Bit Fixed Point DSP with Flash |
Data Sheet |
|
|
||||||||||||
