Product Summary
The HT1625 is a LCD Controller. The HT1625 is specially designed for I/O type MCU used to expand the display capability.
Parametrics
HT1625 absolute maximum ratings: (1)Supply Voltage:-0.3V to 5.5V ; (2)Storage Temperature:-50℃ to 125℃; (3)Input Voltage:VSS-0.3V to VDD+0.3V ; (4)Operating Temperature:-25℃ to 75℃.
Features
HT1625 features: (1)Operating voltage: 2.7V to 5.2V; (2)Built-in RC oscillator; (3)External 32.768kHz crystal or 32kHz frequency source input; (4)1/4 bias, 1/8 duty, frame frequency is 64Hz; (5)Max. 64×8 patterns, 8 commons, 64 segments; (6)Built-in internal resistor type bias generator; (7)3-wire serial interface; (8)8 kinds of time base or WDT selection; (9)Time base or WDT overflow output; (10)Built-in LCD display RAM; (11)R/W address auto increment; (12)Two selectable buzzer frequencies (2kHz or 4kHz); (13)Power down command reduces power consumption; (14)Software configuration feature; (15)Data mode and Command mode instructions; (16)Three data accessing modes; (17)VLCD pin to adjust LCD operating voltage; (18)Cascade application; (19)100-pin QFP package.

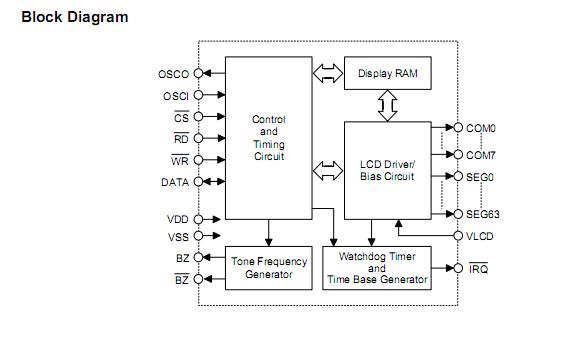

Diagrams
