Product Summary

The IRF840 is a Third generation Power MOSFET from Vishay which provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

Parametrics

IRF840 absolute maximum ratings: (1)Drain-Source Voltage: 500 V; (2)Gate-Source Voltage: ± 20 V; (3)Continuous Drain Current VGS at 10 V: 8.0 A at TC = 25 ℃, 5.1 A at TC = 100 ℃; (4)Pulsed Drain Currenta: 32 A; (5)Linear Derating Factor: 1.0 W/℃; (6)Single Pulse Avalanche Energy b: 510 mJ; (7)Repetitive Avalanche Current a: 8.0 A; (8)Repetitive Avalanche Energy a: 13 mJ; (9)Maximum Power Dissipation TC = 25 ℃: 125 W; (10)Peak Diode Recovery dV/dt c: 3.5 V/ns; (11)Operating Junction and Storage Temperature Range: -55 to + 150 ℃.

Features

IRF840 features: (1)Dynamic dV/dt Rating; (2)Repetitive Avalanche Rated; (3)Fast Switching; (4)Ease of Paralleling; (5)Simple Drive Requirements; (6)Lead (Pb)-free Available.

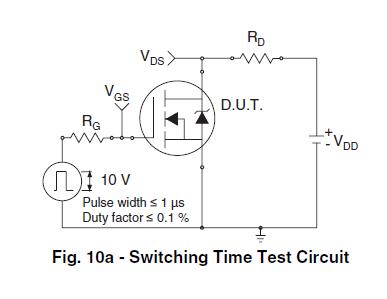

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRF840
IRF840

Vishay/Siliconix

MOSFET N-Chan 500V 8.0 Amp

Data Sheet

0-1: $2.94
1-10: $2.40
10-100: $2.18
100-250: $1.95
IRF840, SiHF840
IRF840, SiHF840

Other


Data Sheet

Negotiable
IRF840_R4943
IRF840_R4943

Fairchild Semiconductor

MOSFET N-CH POWER

Data Sheet

Negotiable
IRF840A
IRF840A

Vishay/Siliconix

MOSFET N-Chan 500V 8.0 Amp

Data Sheet

0-725: $1.91
725-1000: $1.84
1000-2000: $1.79
IRF840A, SiHF840A
IRF840A, SiHF840A

Other


Data Sheet

Negotiable
IRF840A_R4944
IRF840A_R4944

Fairchild Semiconductor

MOSFET TO-220AB

Data Sheet

Negotiable
IRF840AL
IRF840AL

Vishay/Siliconix

MOSFET N-Chan 500V 8.0 Amp

Data Sheet

Negotiable
IRF840ALPBF
IRF840ALPBF

Vishay/Siliconix

MOSFET N-Chan 500V 8.0 Amp

Data Sheet

0-1: $1.34
1-10: $1.18
10-100: $1.06
100-250: $0.99
