Product Summary

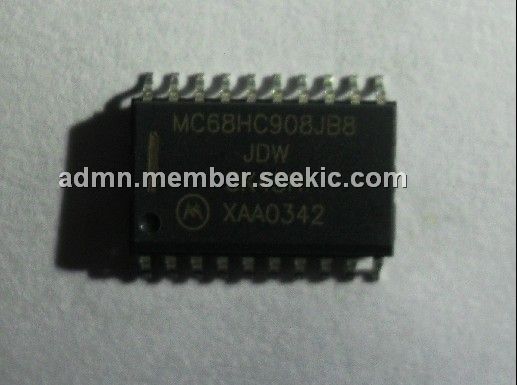

The MC68HC908JB8JDW is a low-cost, high-performance 8-bit microcontroller unit (MCU). The MC68HC908JB8JDW uses the enhanced M68HC08 central processor unit (CPU08) and is available with a variety of modules, memory sizes and types, and package types.
Parametrics
MC68HC908JB8JDW absolute maximum ratings: (1)Supply voltage: –0.3 to +6.0 V; (2)Input voltage: PTE4/D–, PTE3/D+: VSS – 1.0 to VDD+0.3 V, RST, IRQ: VSS – 0.3 to VDD+0.3 V, Others VIN: VSS – 0.3 to VREG+0.3 V; (3)Mode entry voltage, IRQ pin: VSS–0.3 to +11 V; (4)Maximum current per pin excluding VDD and VSS: ± 25 mA; (5)Storage temperature: –55 to +150 ℃; (6)Maximum current of PTD0/1 (20-pin package): –25 to +50 mA; (7)Maximum current out of VSS: 100 mA; (8)Maximum current into VDD: 100 mA.
Features
MC68HC908JB8JDW features: (1)High-performance M68HC08 architecture; (2)Fully upward-compatible object code with M6805, M146805, and M68HC05 Families; (3)3-MHz internal bus frequency; (4)8,192 bytes of on-chip FLASH memory; (5)256 bytes of on-chip random-access memory (RAM); (6)FLASH program memory security1; (7)On-chip programming firmware for use with host PC computer.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC68HC908JB8JDW |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 8 Bit 3MHz |
Data Sheet |
Negotiable |
|
||||
