Product Summary

The L7805CV is a three-terminal positive regulator. The L7805CV is available in TO-220, TO-220FP, TO-3, D2PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications.

Parametrics

L7805CV absolute maximum ratings: (1)DC input voltage:for VO= 5V to 18V:35V, for VO= 20V,24V:40V; (2)Output current:Internally limited; (3)Power dissipation:Internally limited; (4)Storage temperature range:-65℃ to 150℃; (5)Operating junction temperature range:0℃ to 150℃.

Features

L7805CV features: (1)Output current to 1.5 A; (2)Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V; (3)Thermal overload protection; (4)Short circuit protection; (5)Output transition SOA protection.

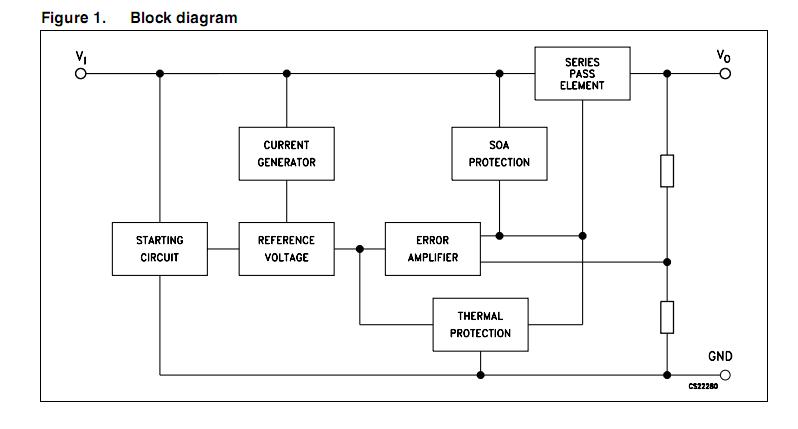

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
L7805CV
L7805CV

STMicroelectronics

Linear Regulators - Standard 5.0V 1.0A Positive

Data Sheet

0-1: $0.35
1-10: $0.30
10-100: $0.22
100-250: $0.19
L7805CV-DG
L7805CV-DG

STMicroelectronics

Linear Regulators - Standard POS Voltage Reg IC 3-Terminal 1.5A

Data Sheet

0-1: $0.41
1-10: $0.30
10-100: $0.25
100-250: $0.22
